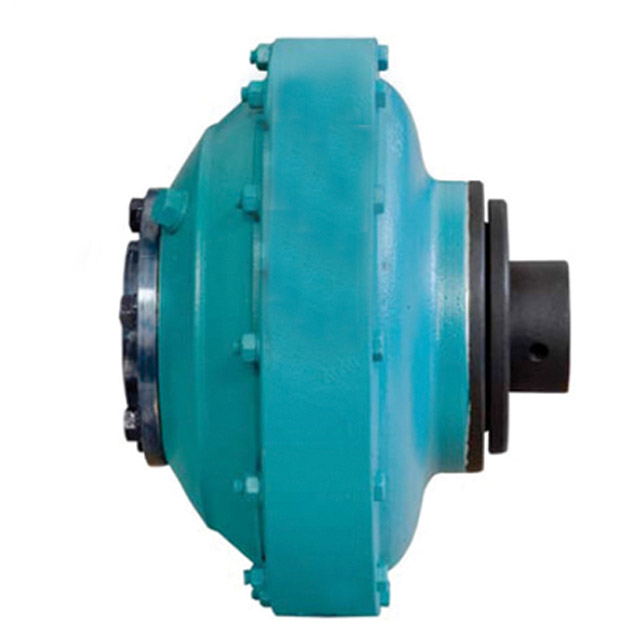

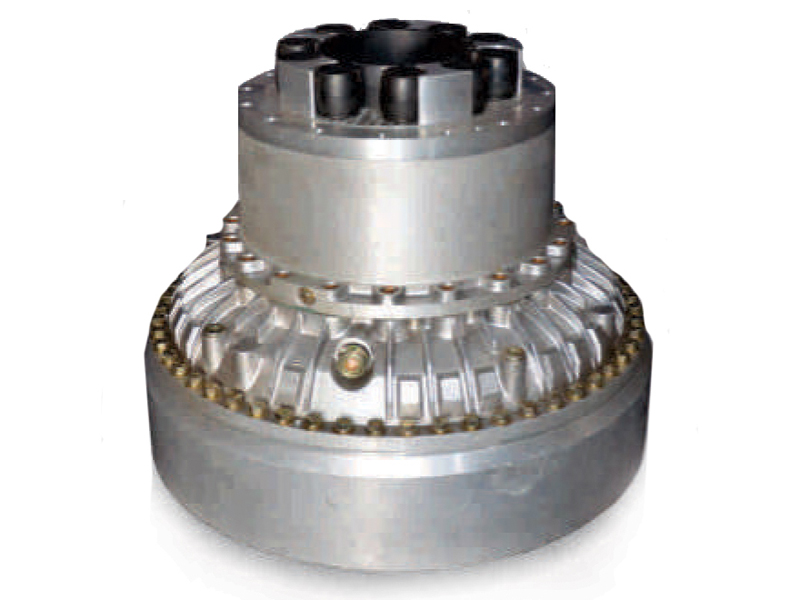

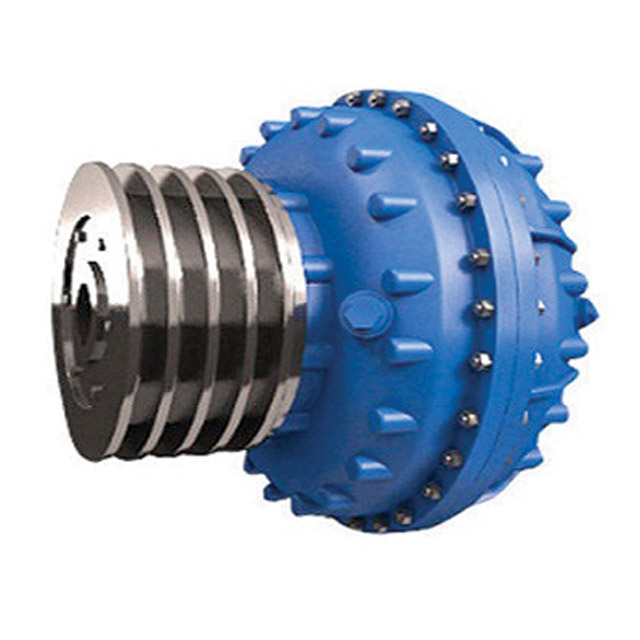

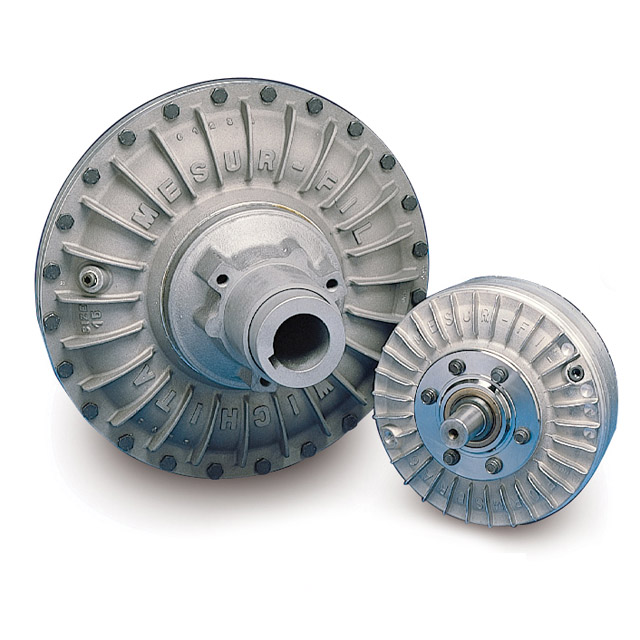

Constant Filling Water or Oil Fluid Couplings
The XJT range of Fluid Couplings are manufactured for Rotech Systems, offering a derivative of either oil fill or water fill, which protects and improves the starting capabilities of electric motors. They also decrease the shock load of startup and protect against over-load. Offering simple installation, reliable operation and long life.
Characteristics of use:
1) Protects and improves the starting capability of electric motors.
2) Decrease the shock load of start up and protects against over-loads.
3) In a multi drive system, it can balance the loads (amps) of each electric motor.
4) Simple installation, reliable operation, long life.
Applications
- Belt conveyor
- Bucket wheel elevators
- Chain conveyors
- Stackers & reclaimers
- Armoured face conveyors
- Stage Loaders
- Tunnelling machines
- Bucket wheel excavators
- Pumps
- Crushers
- Mills
| Size | 500rpm | 600rpm | 750rpm | 1000rpm | 1500rpm | 3000rpm |
| 150 | 0.05 - 0.2 | 0.2 - 0.55 | ||||
| 180 | 0.1 - 0.3 | 0.5 - 1.1 | ||||
| 200 | 0.2 - 0.55 | 0.8 - 2.2 | 12.16.5 | |||
| 220 | 0.4 - 1.1 | 1.5 - 3 | 50 - 100 | |||
| 360 | 2 - 3.8 | 5 - 10 | 16 - 30 | 80 - 145 | ||
| 422 | 4 - 8 | 8 - 18.5 | 28 - 75 | |||
| 487 | 11 - 22 | 25 - 50 | 70 - 160 | |||
| 560 | 18 - 36 | 40 - 80 | 120 - 270 | |||
| 650 | 37 - 73 | 90 - 176 | 260 - 480 | |||
| 750 | 36 - 75 | 70 - 143 | 170 - 330 | 380 - 760 | ||
| 875 | 145 - 280 | 330 - 620 | ||||
| 1000 | 83 - 165 | 160 - 300 | 260 - 590 | |||
| 1150 | 175 - 350 | 265 - 615 | 525 - 1190 | |||
| 1250 | 235 - 540 | 400 - 935 | 800 - 1800 | |||
| 1320 | 315 - 710 | 650 - 1200 | 1050 - 2360 |

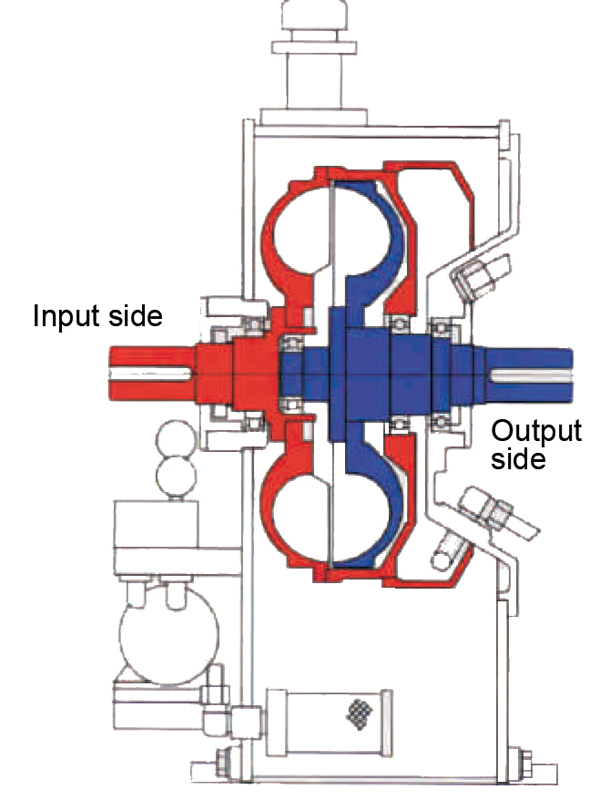

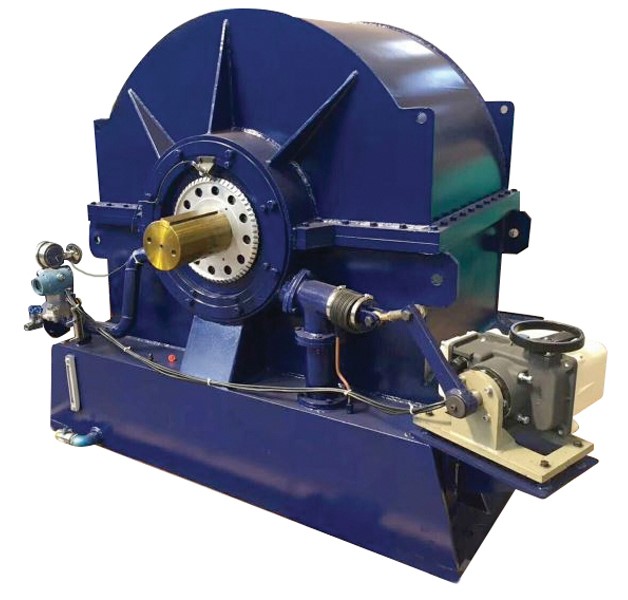

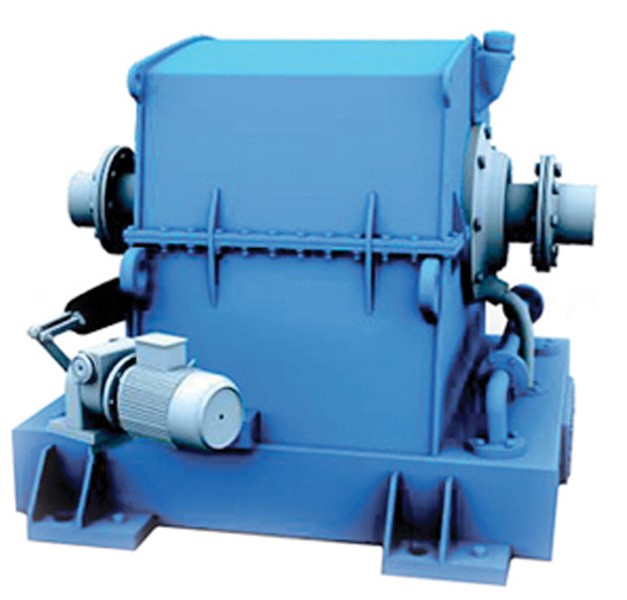

Variable Speed Fluid Coupling

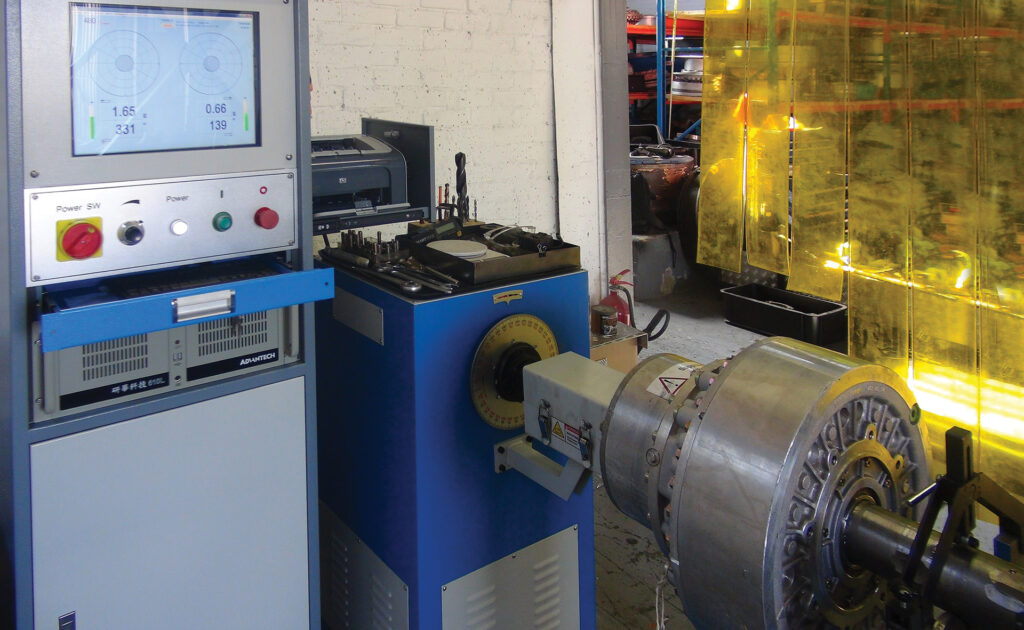

Fluid Couplings Repairs and Balancing
All repaired fluid couplings, new fans and shafts up to 600 kg are DYNAMIC. Balanced to the required ISO standards.
